Product Details | |
---|---|
Brand | Hosem |
Model | A-D490H |
Country of Origin | Fuzhou, China |
Certificate | ISO9001, CE, SASO, IEC 60034, CSA, ISO8525/3, UL 1446 |
Payment & Shipping Terms | |
---|---|
Price Quote | USD27000.00-USD31000.00 |
Minimum Order | 1 Set |
Average Delivery Time | Within 30days after get the firm order. |
Payment Method | T/T or L/C |
Package Details | Ply-wood Packing |
Ability to Supply | 500 Set / Month |
Description
Diesel Generator 60Hz 445kVA with Three Phrase Doosan Engine
ΔTechnical Parameters:
Generator Set Specification | Engine Specification | ||||
Model | A-D490H | Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. | ||
Max. Power | kVA | 490 | Engine Brand | Cummins | |
kW | 392 | Engine Model | P158LE | ||
Rate Power | kVA | 445 | No. of Cylinder | 8 Cylinder V Type | |
kW | 356 | Aspiration | Turbocharged & Aftercooled | ||
Frequency | Hz | 60 | Governor | Electric | |
Rate Voltage | V | 220/127 | Engine Max. Output Power | kW | 458 |
Rate Current | A | 1167.9 | Displacement | L | 14.6 |
Dimension For Open-type Genset | mm | 2850 X 1400 X 1980 | Starting Voltage | V | 24 |
Weight For Open-type Genset | kg | 3067 | Bore | mm | 128 |
Dimension For Soundproof Genset | mm | 3700 X 1650 X 2050 | Stroke | mm | 142 |
Weight For Soundproof Generator | kg | 3350 | Lubrication Oil Capacity | L | 28 |
Alternator Specification | Control Panel Specification | ||||
Alternator Manufacturer | Cummins Generator Technologies | Controller Brand | Deepsea | ||
Alternator Model | HCI 444 FS | Controller Model | DSE7320 | ||
Alternator Brand | STF | Breaker Brand | Delixi | ||
Rate Output | kVA | 440 | Breaker Capacity | A | 1250 |
Frequency | Hz | 60Hz | Battery Charger | Supply | |
Altitude | M | ≤1000 | Emergency Stop Button | Supply | |
Insulation | Class H | Automatic Mains Fail (AMF) | Supply | ||
Voltage Regulation | AVR Model SX460 | The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc. | |||
Protection Grade | IP23 | ||||
Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional | ||||
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. |
Δ Genset Features:

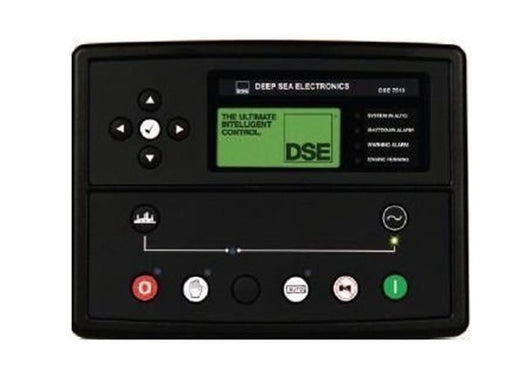

- 1. Advanced Control System: The 3 phase power generator is equipped with an advanced control system, such as a Deepsea, Smartgen, or ComAp digital controller for choice, providing precise monitoring and control of the generator's performance.
- 2. Automatic Transfer Switch (ATS) for Optional: The Doosan generator can be easily integrated with an Automatic Transfer Switch (ATS), enabling automatic switching between the mains power supply and generator power during power outages.
- 3. Comprehensive Protection System: The diesel generator is equipped with a comprehensive protection system, including features like low oil pressure shutdown, high water temperature shutdown, and overload protection, ensuring the safety and longevity of the generator.
- 4. Fast and Stable Load Response: The Doosan soundproof generator is known for its rapid and stable load response. Whether dealing with sudden spikes in power demand or varying load conditions, the generator adapts quickly to ensure a consistent and steady power supply.
- 5. Durable and User-Friendly Construction: The Doosan diesel generator is built for durability, featuring a sturdy base frame that includes positions for forklifts and cranes, making transportation and installation convenient.
ΔFAQ:
- Q1: What is your MOQ for this item?
A1:1 Set.
- Q2: The valid period of the offer?
A2: Usually 30 days.
- Q3: Where is your Loading Port?
A3: FUZHOU MAWEI PORT,CHINA.
- Q4: What are your payment terms?
A4: 30% T/T With Order, 70% balance paid by T/T before shipment.
