| Product Details | |
|---|---|
| Brand | Hosem |
| Model | A-SH88 |
| Country of Origin | Fuzhou, China |
| Certificate | ISO9001, CE, SASO, SONCAP, ISO8528:5 |
| Payment & Shipping Terms | |
|---|---|
| Price Quote | USD5000.00-USD6000.00 |
| Minimum Order | 1 Set |
| Average Delivery Time | Within 30days after get the firm order. |
| Payment Method | T/T or L/C |
| Package Details | Wooden Package or Plastic Foam Package |
| Ability to Supply | 200 Set / Month |

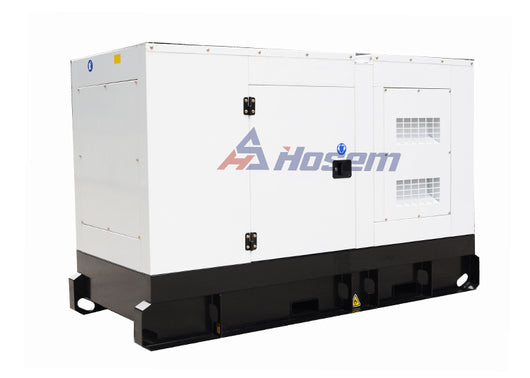

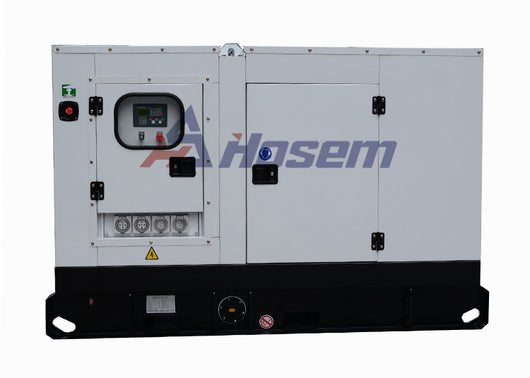

Chinese Generator Rate Output 80kVA with SDEC Diesel Engine and Brushless Alternator
Supply 80kVA Chinese Generator with SDEC brand diesel engine model 4HT4.3-G23 and Hosem brand brushless alternator which made according to the Stamford alternator technologies.
The SDEC brand diesel engine is produced with advanced Euro technologies with emission at Euro Stage II standard.
80kVA Diesel Generator Specification:
1. Diesel Generator Prime Output: 80kVA
2. Diesel Generator Standby Output 88kVA
3. Voltage: 400/230V (Optional voltage from 110V to 690V)
4. Frequency: 50Hz (60Hz also available)
5. Engine Model: 4HT4.3-G23
6. Dimension: L2500 X W1050 X H1250mm
7. Weight: 1250kg.
8. Emission Standard: Euro Stage II
SDEC Engine Generator Supply Range
| SDEC Engine Generator Set Supply Range | ||||||||
| Model | Output 400/230V 50Hz 1500R.P.M. (kVA) | Current | Cummins Engine Model | Engine Output (kW) | Governor | Hosem Alternator Model | Alternator Output (kVA) | |
| Standby | Prime | A | ||||||
| A-SH69 | 69 | 63 | 90.5 | SC4H95D2 | 68 | Electric | ASF224E | 63 |
| A-SH88 | 88 | 80 | 115.5 | 4HT4.3-G23 | 86 | Electric | ASF224GS | 80 |
| A-SH116 | 116 | 105 | 152.2 | SC4H160D2 | 116 | Electric | ASF274DS | 113 |
| A-SH138 | 138 | 125 | 181.1 | SC4H180D2 | 132 | Electric | ASF274D | 125 |
| A-SH186 | 186 | 169 | 244.1 | SC7H230D2 | 170 | Electric | ASF274F | 165 |
| A-SH198 | 198 | 180 | 259.8 | SC7H250D2 | 185 | Electric | ASF274G | 188 |
| A-SH165-1 | 165 | 150 | 216.5 | SC8D220D2 | 160 | Electric | ASF274FS | 150 |
| A-SH220-1 | 220 | 200 | 288.7 | SC8D280D2 | 204 | Electric | ASF274H | 200 |
| A-SH248-1 | 248 | 225 | 325.4 | SC9D310D2 | 228 | Electric | ASF274J | 225 |
| A-SH275-1 | 275 | 250 | 360.9 | SC9D340D2 | 255 | Electric | ASF274K | 250 |
| A-SH344-1 | 344 | 313 | 451.4 | SC12E460D2 | 338 | Electric | ASF314ES1 | 313 |
| A-SH371-1 | 371 | 337 | 486.8 | SC12E460D2 | 338 | Electric | ASF314E | 350 |
| A-SH413-1 | 413 | 375 | 541.9 | SC12E500D3 | 370 | Electric | ASF314FS | 375 |
| A-SH220 | 220 | 200 | 288.7 | SC13G280D2 | 206 | Electric | ASF274H | 200 |
| A-SH248 | 248 | 225 | 325.4 | SC13G310D2 | 227 | Electric | ASF274J | 225 |
| A-SH275 | 275 | 250 | 360.9 | SC13G355D2 | 260 | Electric | ASF274K | 250 |
| A-SH344 | 344 | 313 | 451.4 | SC13G420D2 | 308 | Electric | ASF314ES1 | 325 |
| A-SH371 | 371 | 337 | 486.8 | SC15G500D2 | 373 | Electric | ASF314E | 350 |
| A-SH413 | 413 | 375 | 541.9 | SC15G500D2 | 373 | Electric | ASF314FS | 375 |
| A-SH495 | 495 | 450 | 649.5 | SC25G610D2 | 445 | Electric | ASF354CS | 450 |
| A-SH550 | 550 | 500 | 721.7 | SC25G690D2 | 505 | Electric | ASF354C | 500 |
| A-SH619 | 619 | 563 | 812.3 | SC27G755D2 | 555 | Electric | ASF354D | 563 |
| A-SH688 | 688 | 625 | 902.8 | SC27G830D2 | 662 | Electric | ASF354FS1 | 625 |
| A-SH743 | 743 | 675 | 975.0 | SC27G900D2 | 662 | Electric | ASF354F | 688 |
| A-SH825 | 825 | 750 | 1082.6 | SC33W990D2 | 726 | Electric | ASF404B | 750 |
| A-SH1000 | 1000 | 910 | 1313.5 | SC33W1150D2 | 860 | Electric | ASF404D | 910 |
Supply the Chinese Generator powered by SDEC brand diesel engine, Yuchai brand diesel engine, Ricardo brand diesel engine, Yangdong brand diesel engine and other Chinese engines, the output from 3kVA to 3000kVA.
Supply the China Generators with CKD type, Open-type, Silent type and Mobile type for optional.
