20kVA Diesel Generator Set for Telecom Towers , Soundproof
Deutz series diesel generator set adopt the Deutz brand engine produced by Deutz (Dalian) Engine Co., Ltd. which is the invested by Deutz Germany, which is widely used in army, engineering, mining industry, factory. More reliable and economic.
20kVA Diesel Generator for Telecom
Standard Parts for Diesel Generator Set:
Optional Equipment for Diesel Generator Set:
Complete Diesel Engine
Silent canopy(Soundproof canopy)
Alternator
Super silent canopy Rainproof canopy
Digital Control Panel
Trailer silent canopy
Steel Base Frame
Container silent canopy
Output Circuit Breaker
Container rainproof canopy
40℃ Water Cooled Radiator
ATS(Automatic Transfer Switch)
Starting Batteries and Battery Connect Wires
Oil water separator
Base Frame Fuel Tank
50℃ water cooled radiator
Automatic Battery Charger
Water heater
Complete Filters for Diesel Engine.
Oil heater

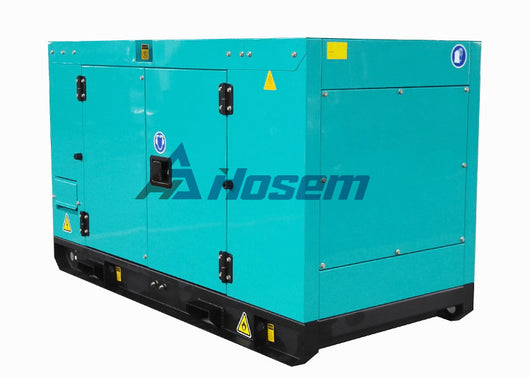

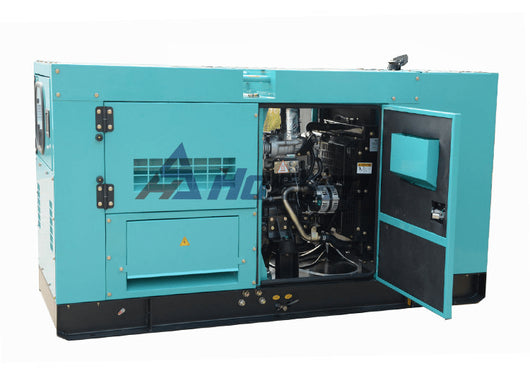

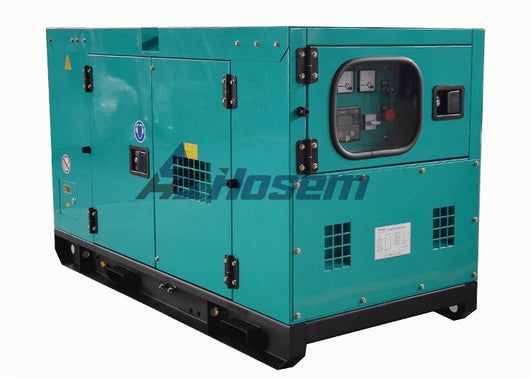

20kVA Silent Diesel Generator Set
20kVA Diesel Generator Set Specification
Model
A-DE22
Max. Power
kVA
22
kW
17.6
Rate Power
kVA
20
kW
16
Frequency
Hz
50
Rate Voltage
V
400/230
Rate Current
A
28.9
Fuel Tank Capacity
L
60
Dimension For Open-type Genset
mm
1650 X 700 X 1250
Weight For Open-type Genset
kg
620
Dimension For Soundproof Genset
mm
2000 X 900 X 1250
Weight For Soundproof Generator
kg
870
Noise Level for Soundproof Generator at 7M
dBA
70
Battery
One of Free Maintenance Battery
Deutz Engine Specification for 20kVA Generator Set
Engine Manufacturer
Deutz (Dalian) Engine Co., Ltd.
Engine Brand
Deutz
Engine Model
BFM3 G1
No. of Cylinder
4 Cylinder in line
Aspiration
Naturally aspirated
Governor
Electric
Engine Max. Output Power
kW
22
Displacement
L
3.2
Compression Ratio
18.5 : 1
Starting Voltage
V
12
Bore
mm
98
Stroke
mm
105
Lubrication Oil Capacity
L
7.5
Intake Air Flow
M3/Min
N.A.
Fuel Consumption at 100% Load
L/H
5.4
Alternator Specification For the Diesel Generator Set
Alternator Manufacturer
Cummins Generator Technologies
Alternator Model
PI 144D
Alternator Brand
Stamford
Rate Output
kVA
20
Frequency
Hz
50Hz
Altitude
M
≤1000
Insulation
Class H
Phase
3 Phase
Working Temperature without power decrease
≤40℃
Working Altitude without power decrease
≤1000m
Automatic Voltage Regulation
SX460
Protection Grade
IP23
Alternator for optional
Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional
Control Panel Specification For the 20kVA Diesel Generator Set
Controller Brand
Smartgen
Controller Model
HGM6120N
Breaker Brand
Delixi
Breaker Capacity (A)
63
Battery Charger
Smartgen Model BAC06A
Emergency Stop Button
Supply
Automatic Mains Fail (AMF)
Supply
Fuel Level
Supply
Automatic Transfer Switch
ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.
